Fuse box diagram (location and assignment of electrical fuses and relays) for Chevrolet (Chevy) Corvette (C5; 1997, 1998, 2000, 2001, 2002, 2003, 2004). C5 Corvette Forums. C5 Corvette General Discussion. C5 Ground Points. Jump to Latest Follow 1 - 16 of 16 Posts. CorvetteDon · Registered. Joined Feb 8, 2008 · 5,550 Posts . Discussion Starter · #1 · Feb 4, 2010 (Edited) ...

Corvette Vendor versions have the same problem. The fuse is located in the wrong place, on the Orange module (fan motor) wire. From basic electrical safety design theory, a fuse should always be located closest to the power source, as a fuse only protects what is \”downstream\” from it. The proper fuse location is on the Red +12V wire. This ...

C5 corvette fuse box diagram

7 Jan 2018 — Chevrolet Corvette (2001 – 2002) – fuse box diagram. Year of production: 2001, 2002. Instrument panel fuse block. The interior fuse center ... Fuse box diagrams (location and assignment of electrical fuses and relays) for Chevrolet (Chevy) Corvette (C6; 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 Chevrolet Corvette (2000) – fuse box diagram. Year of production: 2000. Instrument panel fuse block. The interior fuse center is on the right side of your instrument panel. Turn the knob and pull the door to access the fuses. Chevrolet Corvette – fuse box – instrument panel

C5 corvette fuse box diagram. NOTE: Instrument panel electrical center is located under passenger's side toe board. See Fig. 1. Page 2. 2002 Chevrolet Corvette. 2001-02 ELECTRICAL Fuses ...7 pages Apr 3, 2019 - Fuse box diagram (location and assignment of electrical fuses and relays) for Chevrolet (Chevy) Corvette (C5; 1997, 1998, 2000, 2001, 2002, ... The outcomes of the aggregation are posted on this site. Here are several of the top drawings we obtain from numerous sources, we wish these images will certainly work to you, and ideally very relevant to exactly what you want regarding the Corvette Fuse Box Diagram is. C5 Bcm/ip Fuse Panel Breakdown – Team Zr-1 Corvette Racers, size: 800 x ... Registered. Joined Jul 12, 2009. ·. 5 Posts. Discussion Starter · #1 · Aug 13, 2010. hi, does anyone know where i can find an online picture of a c5 corvette's body control module fuse box. i'm looking for the one under the passenger floor. thank you. Car Maintenance 10 Things Every Car Owner Should Know - The Short List.

Video to the article. Fuse box location and diagrams: Chevrolet Corvette (C5; 1997-2004) C5 Corvette Fuse Relay location and how to disable or turn off windshield wipers by pulling the fuse. C5 Corvette Parasitic Battery Drain and Relay Noise – Trouble Shooting. Corvette C5 No Start Fix and C5 Fuse Location. 28 Aug 2013 — C5 General - Underhood Fuse Box Diagram - The sticker on the underside of my engine compartment fuse box cover has become mostly unreadable. 2002 Chevrolet Corvette Fuse Diagram for underhood fuse box . 1 Rear Fog Lamp 2 Approach 3 Right Headlamp Motor 4 Left Headlamp Motor 5 Anti-Lock Brakes. Selective Real Tune Damping (SRTD) 6 Fog Lamp 7 Selective Real Time Damping (SRTD) Relay 8 Headlamp Low-Beam Right 9 Headlamp High-Beam Right Chevrolet Corvette (2000) – fuse box diagram. Year of production: 2000. Instrument panel fuse block. The interior fuse center is on the right side of your instrument panel. Turn the knob and pull the door to access the fuses. Chevrolet Corvette – fuse box – instrument panel

Fuse box diagrams (location and assignment of electrical fuses and relays) for Chevrolet (Chevy) Corvette (C6; 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013 7 Jan 2018 — Chevrolet Corvette (2001 – 2002) – fuse box diagram. Year of production: 2001, 2002. Instrument panel fuse block. The interior fuse center ...

Căutare Ridica Frunze Socialist Citroen C5 Fuse Box Diagram Fenetreshplamoureux Com

03 04 Corvette C5 Under Hood Fuse Box Panel 10316193 Contemporary Corvette

Fuse Box Diagram Chevrolet Corvette C5 1997 2004

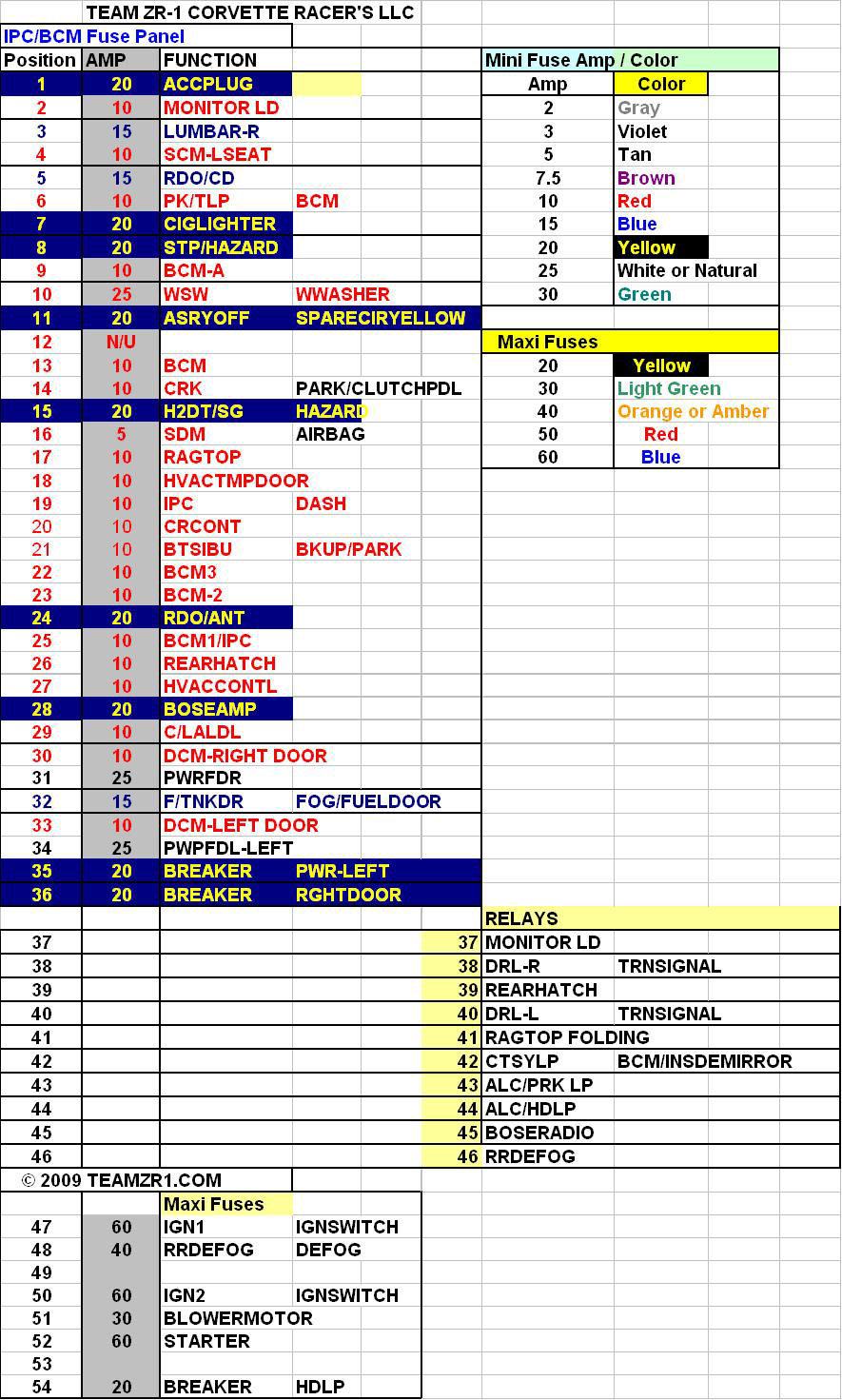

C5 Bcm Ip Fuse Panel Breakdown Team Zr 1 Corvette Racers
