Activities: Review the work activity affinity diagram (WAAD) and user concerns in the social model for the system of your choice, noting user or customer concerns relating to UX goals. Deliverables: A short list of UX goals for one user class of the system of your choice. Schedule: A half hour or so (it should be easy by now). Affinity Mapping as Supplemental Activity 1. Prep & run activity. We often use Affinity Mapping as a tool at the end of another activity like Rose, Bud, Thorn or P.O.E.M.S. It's especially helpful when you're trying to make sense of user feedback or any other activity that produces a lot of material. Run your first activity as you always would.

A work activity affinity diagram (WAAD) is an affinity diagram used to sort and organize work activity notes in contextual analysis, pulling together work activity notes with similarities and common themes to highlight common work patterns and shared strategies across all users.

Work activity affinity diagram

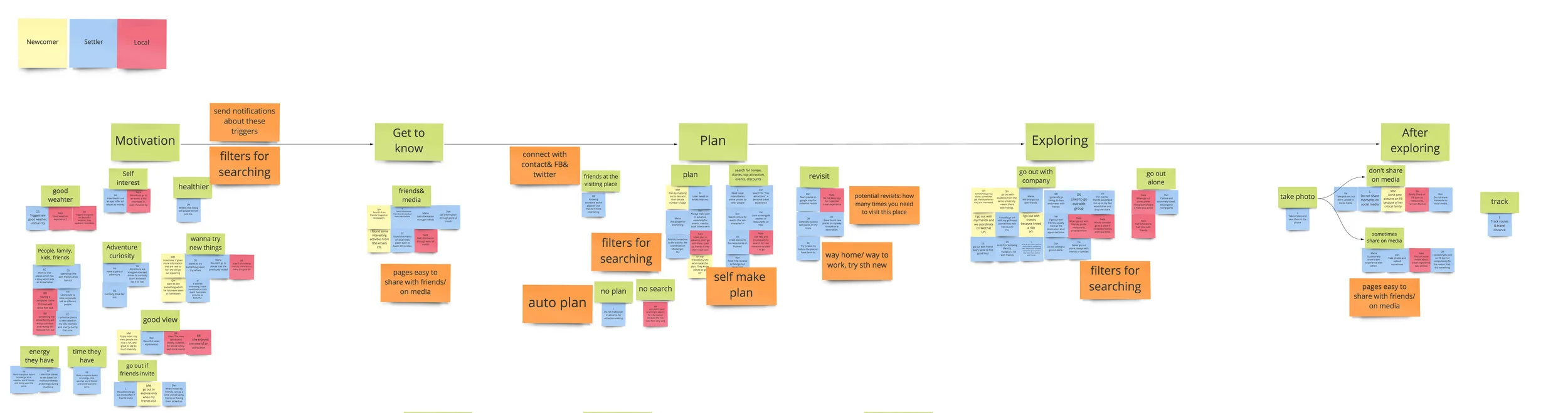

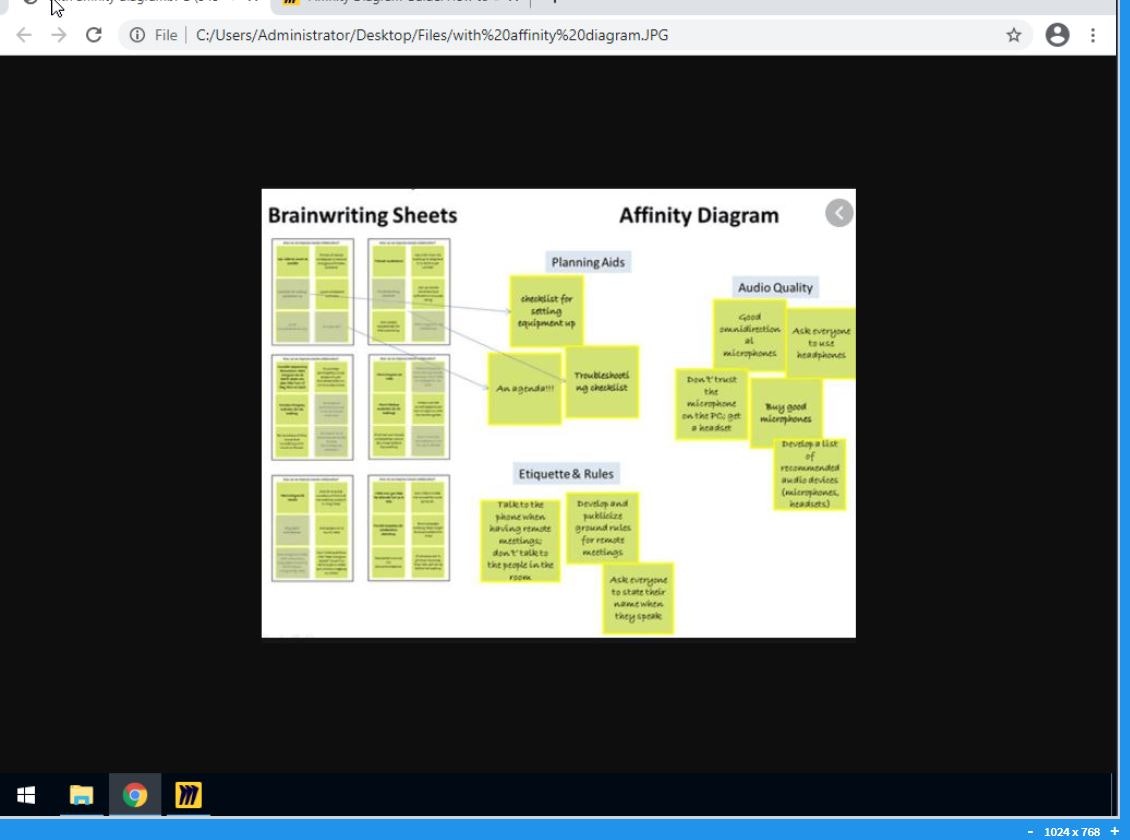

Figure 2 Affinity Diagram Example. Affinity Diagram Example #2. The following example comes from a hospital setting. Seeking to better understand the barriers to on-time delivery of medications, the team created an affinity diagram in six steps. Assigned a group leader for the activity. Agreed on a statement of the issue or problem. Benefits of using an affinity diagram template You can use an affinity diagram to generate, organize, and consolidate information that comes out of a brainstorming session. Whether you're building a product, working through a complex problem, establishing a process, or piecing apart an issue, an affinity diagram is a useful and simple framework. Work Activity Affinity Diagram (WAAD) Jordan Ottesen. September 25, 2019. To be totally honest, this was a unique application of the WAAD. My research was primarily a top-down technique (abstract, high level solution seeking without an existing product) and affinity diagrams are generally used as a bottom-up technique (designing an experience ...

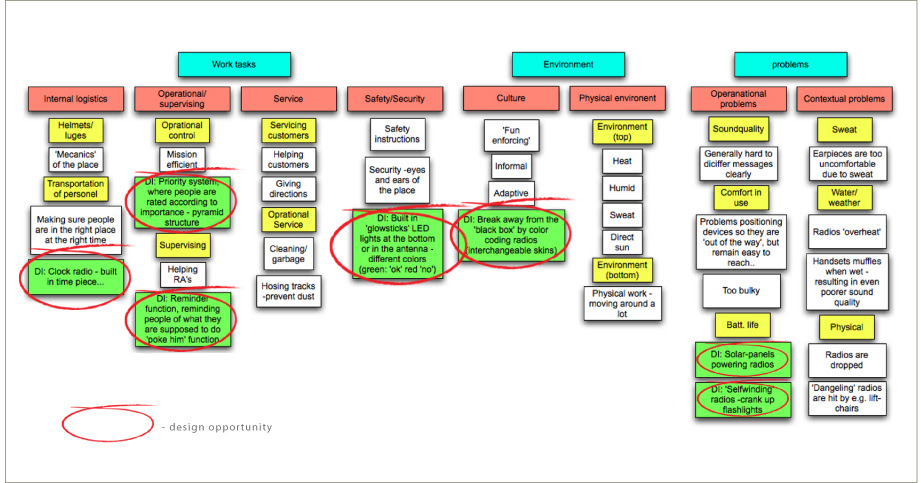

Work activity affinity diagram. The work activity affinity diagram (WAAD) A work activity affinity diagram is a way to sort data into categories and sub-categories when you don't know in advance what the categories will be The data determine the categories, not preconceived notions In practice, it's both Other tools include: interrelationship diagram, tree diagram, prioritization matrix, matrix diagram, process decision program chart, and activity network diagram. How to Make an Affinity Diagram SmartDraw makes creating professional affinity diagrams simple, with easy-to-use templates allowing you to create diagrams in minutes. For teams that do WAAD building frequently, there are higher-tech WAAD-building tools. In Fig. 8-8, we show a team at Virginia Tech using affinity diagram software on a high-resolution large-screen display as an alternative to paper-based work activity note shuffling (Judge, Pyla, McCrickard, & Harrison, 2008).Each analyst can select and manipulate work activity notes on a laptop or tablet ... Affinity diagramming is a great way to sort through dense research data and get to the root of findings. It also gets stakeholders engaged and invested in your UX research at an early stage. Here's our complete guide to running an affinity diagram session, including a step-by-step video on remote workshops.

An affinity diagram is the organized output from a brainstorming session. It is one of the seven management tools for planning. The diagram was created in the 1960s by Kawakita Jiro and is also known as the KJ method. The purpose of an affinity diagram is to generate, organize, and consolidate information concerning a product, process, complex ... Formalized in the 1960s by Japanese anthropologist Jiro Kawakita, affinity diagrams can also be referred to as affinity charts, affinity maps, or the KJ method. Affinity diagrams are ideal for sorting large amounts of data or long lists of ideas into related groups. You can use affinity diagrams to: Organize the results of a brainstorming session. Deliverable 2: Work Activity Affinity Diagram and Requirements 1. Each team member should independently synthesize work activity notes from the raw interview notes. Then as a team create a work activity affinity diagram using the work activity notes using the process discussed in class. Submit a (high resolution) image of Guidelines are not laws. Plan for the project, not by the book. Published 04/07/18 by Josh Kim, Project Manager and UX Designer Carrying off from our interviews, it was finally time to begin the highly anticipated building of the work activity affinity diagram (WAAD) with the team.

The affinity diagram is a business tool used to organize ideas and data. It is one of the Seven Management and Planning Tools. But how design the Affinity Diagram quick and easy? ConceptDraw DIAGRAM diagramming and vector drawing software offers the Seven Management and Planning Tools Solution from the Management Area. Work Activity Affinity Diagram The interaction design requirements are generated in the form of design requirements and work activity affinity diagrams with two main tasks, namely proposing innovation measurements and obtaining ... Affinity Diagram Example. An affinity diagram is the organized output from a brainstorming session. Use it to generate, organize, and consolidate information related to a product, process, complex issue, or problem. After generating ideas, group them according to their affinity, or similarity. The following example comes from a hospital setting. • Build work activity affinity diagram (WAAD) from work activity notes • Communicate results to team via walkthroughs . The work activity affinity diagram (WAAD) • A work activity affinity diagram is a way to sort data into categories and sub-categories when you don t know in advance what the ...

Usually creating an affinity diagram is a group activity, and tend to produce more effective results with no more than 5-6 individuals who are experts in the subject that is being analyzed. This way you can collect different and useful insight, opinions and perspectives to help arrive at faster solutions or better innovations.

Example 5: Work Activity Affinity Diagram The given affinity diagram example is about food delivery, including sections of delivery, kitchen, new ideas, and the support team. Delivery includes things that the driver needs to follow. The new ideas section talks about those ideas that are favorable for both the customers and the drivers.

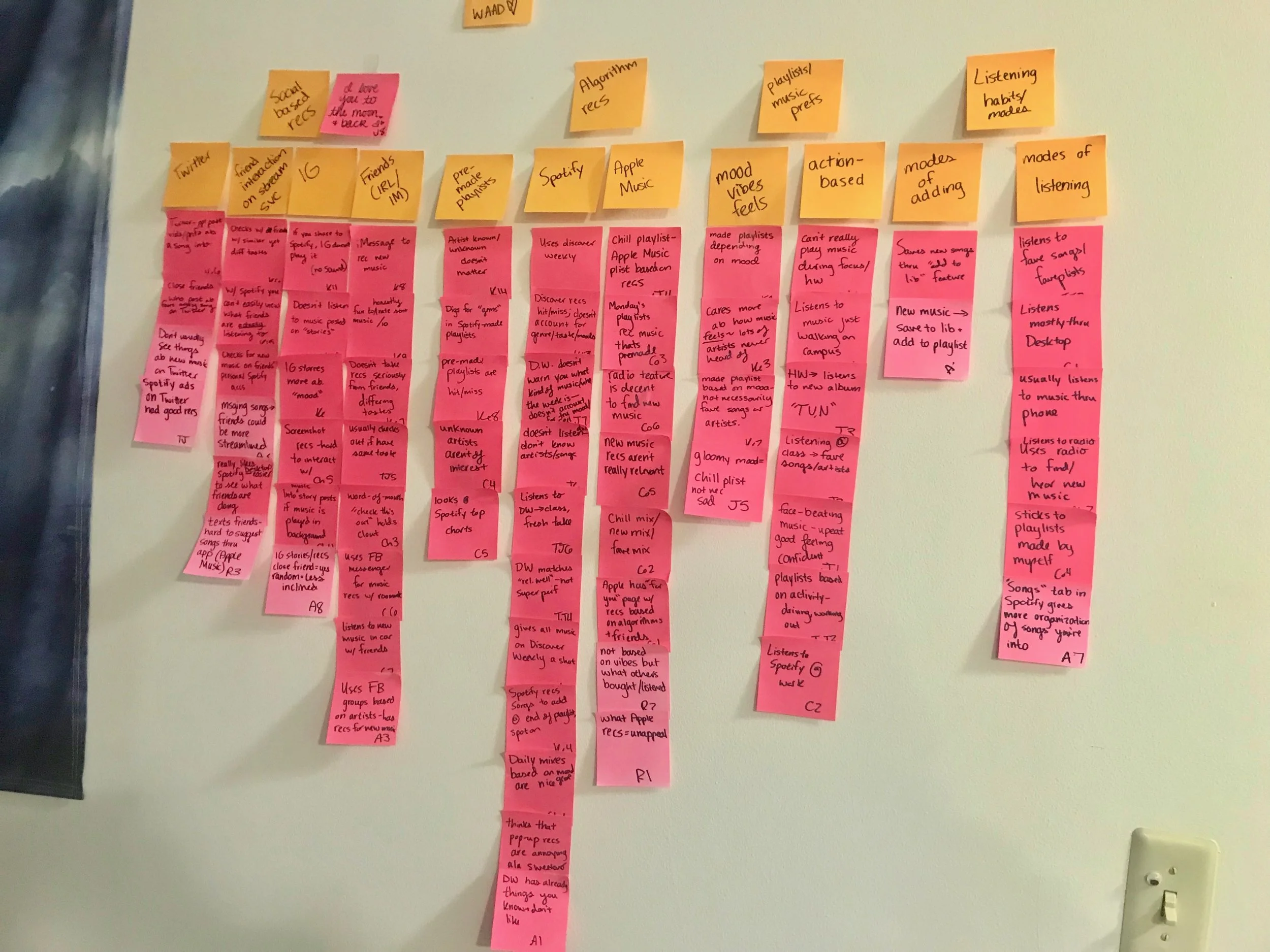

Work Activity Affinity Diagram (WAAD) Jordan Ottesen. September 25, 2019. To be totally honest, this was a unique application of the WAAD. My research was primarily a top-down technique (abstract, high level solution seeking without an existing product) and affinity diagrams are generally used as a bottom-up technique (designing an experience ...

Benefits of using an affinity diagram template You can use an affinity diagram to generate, organize, and consolidate information that comes out of a brainstorming session. Whether you're building a product, working through a complex problem, establishing a process, or piecing apart an issue, an affinity diagram is a useful and simple framework.
