Ray Diagrams for Lenses The image formed by a single lens can be located and sized with three principal rays. Examples are given for converging and diverging lenses and for the cases where the object is inside and outside the principal focal length. The "three principal rays" which are used for visualizing the image location and size are:

Convex Lens - Ray diagram, Image Formation, Table - Teachoo

The convex lens ray diagram shown in the image has been shaped so that all light rays that enter it parallel to its axis cross one another at a single point on the opposite side of the lens. Such a lens is called a converging lens for the converging effect it has on light rays. The point at which the rays cross is defined to be the focal point F of the lens.

CC | Working with lenses and mirrors: how to draw a ray diagram

A camera or human eye Cameras and eyes contain convex lenses. Ray diagrams for double convex lenses were drawn. Where both reflected rays meet is point A. A lens is a transparent object that causes the light that passes through it to refract. A ray diagram is a tool used to determine the location size orientation and type of image formed by a lens.

Ray diagrams for image formation of (a) converging (bi-convex ...

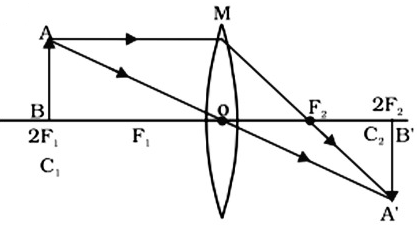

Convex Lens Ray Diagrams. If an object is placed further from the lens than the focal length f then a real image will be formed, and the converging lens ray diagram will be drawn in the following way: Diagram showing the formation of a real image by a lens.

Convex Lens - Key Stage Wiki

Here are three examples to help practice drawing ray diagrams for convex lenses. Example of an Object Farther Away Than the Focal Length A pencil is placed 25 cm away from a convex lens which has a...

Cyberphysics - Rules for drawing ray diagrams

Convex concave ray diagrams. 1. J.M. Gabrielse Ray Diagrams. 2. J.M. Gabrielse Spherical Mirrors (concave & convex) 3. J.M. Gabrielse Concave & Convex (just a part of a sphere) C: the centre of curvature (centre point of the sphere) F: the focus (focus) of the mirror (halfway between C and the mirror) • C • F Principal Axis Curved Surface. 4.

To Find Image Distance For Varying Distance Of A Concave Lens

The description is applied to the task of drawing a ray diagram for an object located beyond the 2F point of a double convex lens. 1. Pick a point on the top of the object and draw three incident rays traveling towards the lens. Using a straight edge, accurately draw one ray so that it passes exactly through the focal point on the way to the lens.

Ray Diagrams for Lenses

Concave Mirror Ray Diagram lets us understand that, when an object is placed at infinity, a real image is formed at the focus. The size of the image is much smaller compared to that of the object. When an object is placed behind the center of curvature, a real image is formed between the center of curvature and focus.

Lenses and images: Physclips - Light

The ray parallel to the principal axis passes through the focal point after refraction by the lens. If an object is on one side of the concave lens the concave lens can form the image of the object. Best Explanation for Ray diagrams for the concave lens and Drawing concave lens with the help of a compass.

Ray Diagrams for Lenses

Convex Lens - Ray diagram Last updated at Nov. 18, 2021 by Teachoo For a Convex Lens, object can be kept at different positions Hence, we take different cases Case 1 - Object is Placed at infinity In this Case, Object is kept far away from lens (almost at infinite distance) So, we draw rays parallel to principal axis

5. Ray Diagram Convex Lens Virtual Image Diagram | Quizlet

Here you have the ray diagrams used to find the image position for a converging lens. You can also illustrate the magnification of a lens and the difference between real and virtual images. Ray diagrams are constructed by taking the path of two distinct rays from a single point on the object. A light ray that enters the lens is an incident ray.

Image formation by convex and concave lens ray diagrams

Ray diagram for an object placed between 2F and F from a convex lens In a film or data projector, this image is formed on a screen. Film must be loaded into the projector upside down so the ...
