Sb, Cu, Ag, Zn, and In. Typical examples for the phase diagrams and thermody-namic properties of Sn-In-X ternary systems are shown. The application of the database to the alloy design for Pb-free solders is also presented. Key words: Phase equilibria, thermodynamics, database, Sn-In base alloys, Pb-free solders viscosity, etc. Download scientific diagram | Phase diagram of Cu-Ag from publication: Fabrication, properties and microstructures of high strength and high conductivity copper-silver wires | Research results of ...

A 90 wt% Ag-10 wt% Cu alloy is heated to a temperature within the “B+ liquid” phase region. If the composition of the liquid phase is 85 wt% Ag, determine: (a) The temperature of the alloy (b) The composition of the B (c) The weight fractions of both phases Phase diagram of Cu-Ag (for both question) 20 40 60 80 100 2200 1200 A 2000 Liquidus ...

Cu ag phase diagram

Mechanical Engineering questions and answers. 1. Considering the Cu-Ag phase diagram in Figure 1-what are the melting temperatures of Cu and Ag? Define the Eutectic point of the CU-Ag alloy in terms of % composition and temperature, (4 marks) 2. Sketch and label the grain structure of a 10% Ag, 90% Cu alloy at room temperature? Abstract. The phase diagram of the Ag-CuO x. system was experimentally constructed.An eutectic reaction CuO + Ag = L 1 (99at%Ag) at 1215K and a monotectic reaction CuO + L 1 (98at%Ag) = L 2 (34.5at%Ag) at 1242K were detected in air. TG experiments showed the weight loss at the monotectic temperature due to oxygen evolution. (c) From Problem 9.8c, just the liquid phase is present for a 55 wt% Ag-45 wt% Cu alloy at 900 °C, as may be noted in the Ag-Cu phase diagram shown below (at point C)—i.e., W L = 1.0 Excerpts from this work may be reproduced by instructors for distribution on a not-for-profit basis for testing or instructional purposes only to

Cu ag phase diagram. Melting temperatures of Sn-Ag-Cu (SAC) alloys in the Sn-rich corner are of interest for lead-free soldering. At the same time, nanoparticle solders with depressed melting temperatures close to the Sn-Pb eutectic temperature have received increasing attention. Recently, the phase stability of nanopar … Phase Diagram. このサイトを検索 ... Cu-Ag. Data from RICT-Sol alloy database ver.1.0. Sign in | Recent Site Activity | Report Abuse | Print Page | Powered By Google Sites ... Cu-Au, Ag-Au, Cu-Ag, and Ni-Au intermetallics: First-principles study of temperature-composition phase diagrams and structures V. Ozolin¸sˇ, C. Wolverton, and Alex Zunger National Renewable Energy Laboratory, Golden, Colorado 80401 ~Received 19 September 1997! 金属やセラミックスの状態図、エンリンガム図などの情報を提供しています。 一部、不確かなものもありますので、自己 ...

Janet, The areas on the right and left of that diagram represent the single phase solid areas in the Ag Cu system. What that means is at the ratios and temperatures shown the alloy formed is a single phase solid solution. The reading of phase diagrams is a fairly complex subject and is not one to be condensed to a single email response The illustration below is the Cu-Zn phase diagram (Figure 10.19). A vertical line at a composition of 64 wt% Zn-36 wt% Cu has been drawn, and, in addition, horizontal arrows at the four temperatures called for in the problem statement (i.e., 900°C, 820°C, 750°C, and 600°C). Answer to: Consider the Cu-Ag phase diagram in figure below. At a temperature of 900 C and a composition of 40 wt% Ag, how much of each phase is... a: mostly Cu b: mostly Ag • T E: No liquid below T E • C E composition Ex.: Cu-Ag system Cu-Ag system L (liquid) aL + L+b b a + b C o wt% Ag 0 20 40 60 80 100 200 1200 T(°C) 400 600 800 1000 C E T E 8.0 71.9 91.2 779°C Chapter 9 - 16

This article is a compilation of ternary alloy phase diagrams for which silver (Ag) is the first-named element in the ternary system. The diagrams are presented with element compositions in weight percent. The article includes 16 phase diagrams: Ag-Au-Cu liquidus projection; Ag-Au-Cu isothermal section at 850 °C; Ag-Au-Cu isothermal section at ... 金属やセラミックスの状態図、エンリンガム図などの情報を提供しています。 一部、不確かなものもありますので、自己 ... (c) The Ag-Cu phase diagram (Figure 9.7) is shown below; the point labeled “C” represents the 55 wt% Ag-45 wt% Cu composition at 900°C. As may be noted, point C lies within the Liquid phase field. The ternary alloy system Ag-Cu-Si was investigated in detail for the first time. The phase diagram was analysed by means of light optical microscopy, powder x-ray diffraction, differential thermal analysis (DTA) and scanning electron microscopy in combination with energy dispersive x-ray spectroscopy. The complete isothermal section at 650 °C was studied experimentally, and several additional ...

Phase diagrams are classified according to the number of component present in a particular system. Phase diagram -Useful information ... For isomorphous system - E.g.: Cu-Ni, Ag-Au, Ge-Si, Al 2 O 3-Cr 2 O 3. Hume-Ruthery conditions Extent of solid solubility in a two element system can be predicted based on Hume-Ruthery conditions.

Phase Diagrams • Indicate phases as function of T, Co, and P. • For this course:-binary systems: just 2 components.-independent variables: T and Co (P = 1 atm is almost always used). • Phase Diagram for Cu-Ni system Adapted from Fig. 9.3(a), Callister 7e. (Fig. 9.3(a) is adapted from Phase Diagrams of Binary Nickel Alloys , P. Nash

New Cu-Sn phase diagram. Acknowledgements. We thank the FWF for funding this work under the project P21507-N19 within the COST Action MP0602 and the project I559-N19, which is part of the DFG Priority Program SPP 1473 "WeNDeLIB". We also thank Christian Lengauer for his technical support to perform the HT-XRD measurements.

Ag Cu Phase Diagram - Phase Formation And Stability Alloy Phases In Free Nanoparticles. thermodynamic properties of metastable ag cu alloys 900 800 700 600 500 400 fig 1 the solid portion of the ag cu phase diagram the solid line is determined using the free energy minimization. Ag Cu Phase Diagram - Metals Free Full.

Status of the thermodynamic description: F.H. Hayes, H.L. Lukas, G. Effenberg and G. Petzow, Z. Metallkde. 77 (1986) 749-754: Full thermodynamic assessment, adapted ...

β Phase: It is rich in Ag and Cu is present as solute and again has FCC structure. (α + β) phase constitutes of pure copper and pure silver. iv. Below line CEG (779°C), there is only partial solubility of Ag in Cu (α phase) and Cu in Ag (β-phase). Maximum solubility of Ag in Cu occurs at 779°C and is 8%.

The phase diagram of the Ag-Cu-In system was investigated using powder X-ray diffraction (XRD), differential scanning calorimetry (DSC) and electron probe microanalysis (EPMA). Two isothermal sections (at 510 and 607 °C) and 15 isopletic sections were studied. The results showed seven ternary peritectics, one ternary eutectic and one ...

Phase Diagrams & Computational Thermodynamics. Ag-Cu-Sn System. Calculated Liquidus Projection: Sn-rich Part: Status of the thermodynamic description: Ternary liquid adjusted to reproduce the eutectic L ->Ag 3 Sn + Cu 6 Sn 5 + (Sn) U.R. Kattner, NIST, 2000 . Sources of the binary descriptions:

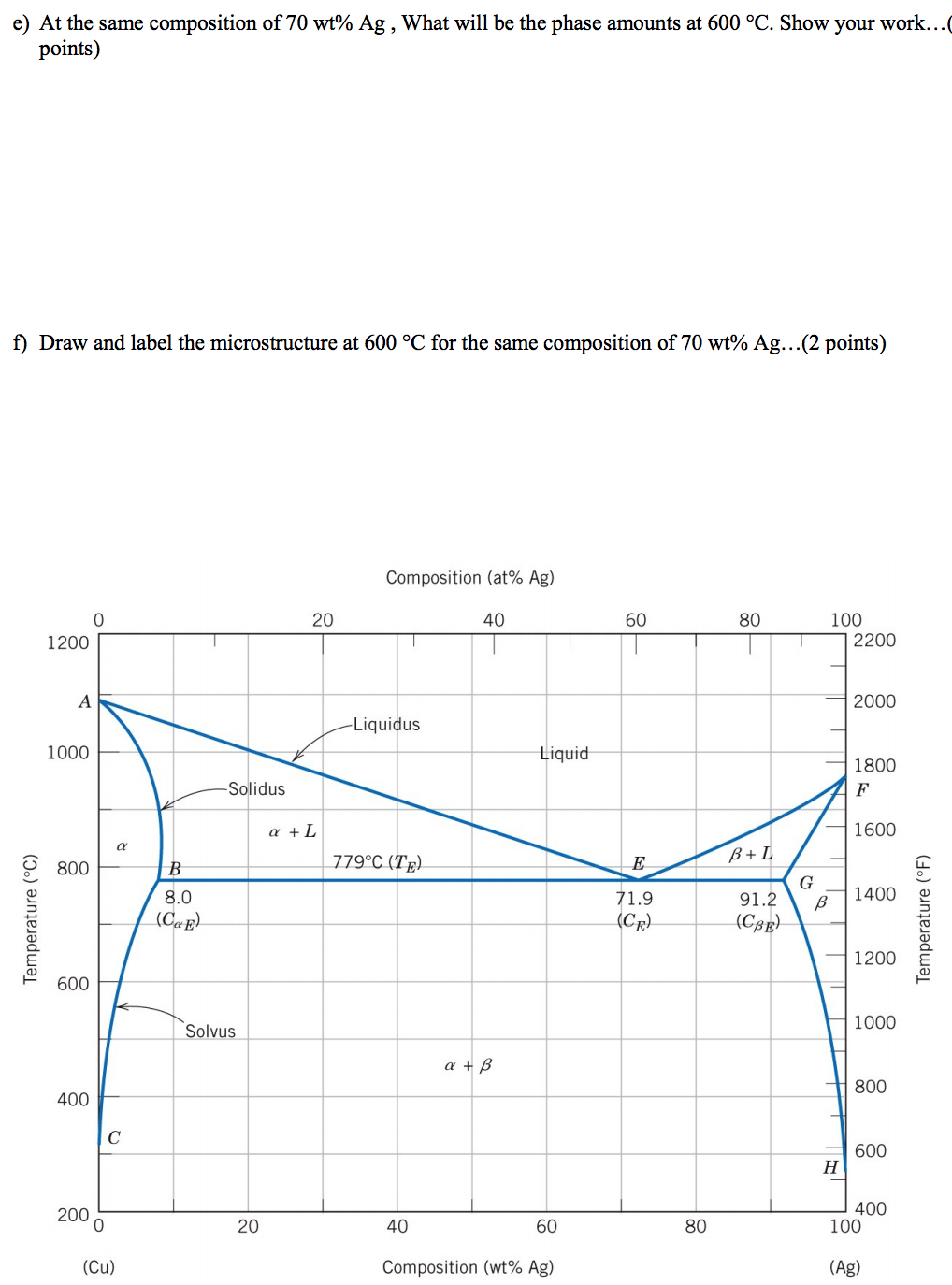

Use the following silver-copper phase diagram for Problems 5-9. 5. What are the solubility limits of Ag in (Cu) and Cu in (Ag)? Recall that (Cu) and (Ag) are the same as α and β, respectively. The solubility limit of Ag in (Cu) is 7.9 wt. % Ag. The solubility limit of Cu in (Ag) is 8.8 wt.% Cu. Note that these

The phase diagram of Ag-Sn-Cu is as follows: inorganic-chemistry thermodynamics metal metallurgy alloy. Share. Improve this question. Follow edited Sep 13 '19 at 16:01. user7951 asked Jul 24 '15 at 22:56. Muzammil Muzammil. 484 4 4 silver badges 11 11 bronze badges

PHASE DIAGRAMS PROBLEM SOLUTIONS 9.17 A 90 wt% Ag-10 wt% Cu alloy is heated to a temperature within the β + liquid phase region. If the composition of the liquid phase is 85 wt% Ag, determine: (a) The temperature of the alloy (b) The composition of the β phase (c) The mass fractions of both phases Solution

Download scientific diagram | Cu-Ag Phase Diagram. The eutectic composition is 28.1 wt% Cu-71.9 wt% Ag and the solid solubility limit of silver in copper is 8 wt% Ag (after Hansen and Anderko 1958 ...

Three single phase regions (α- solid solution of Ag in Cu matrix, β= solid solution of Cu in Ag matrix, L - liquid) Three two-phase regions (α+ L, β+L, α+β) Solvus line separates one solid solution from a mixture of solid solutions. Solvus line shows limit of solubility Copper – Silver phase diagram liquid α+ β Solidus Liquidus

Phase Diagrams Slow Cool Morphology Consider the morphology in a slow cool from T1 (liquid) to T3 (solid). Just below T1 domains of Cu/Ag at about 98% Cu form in the liquid matrix. The fraction Cu/Ag solid increases as temperature drops, probably growing on the seeds formed at T1. By T2 the matrix is solid with domains of liquid.

(c) From Problem 9.8c, just the liquid phase is present for a 55 wt% Ag-45 wt% Cu alloy at 900 °C, as may be noted in the Ag-Cu phase diagram shown below (at point C)—i.e., W L = 1.0 Excerpts from this work may be reproduced by instructors for distribution on a not-for-profit basis for testing or instructional purposes only to

Abstract. The phase diagram of the Ag-CuO x. system was experimentally constructed.An eutectic reaction CuO + Ag = L 1 (99at%Ag) at 1215K and a monotectic reaction CuO + L 1 (98at%Ag) = L 2 (34.5at%Ag) at 1242K were detected in air. TG experiments showed the weight loss at the monotectic temperature due to oxygen evolution.

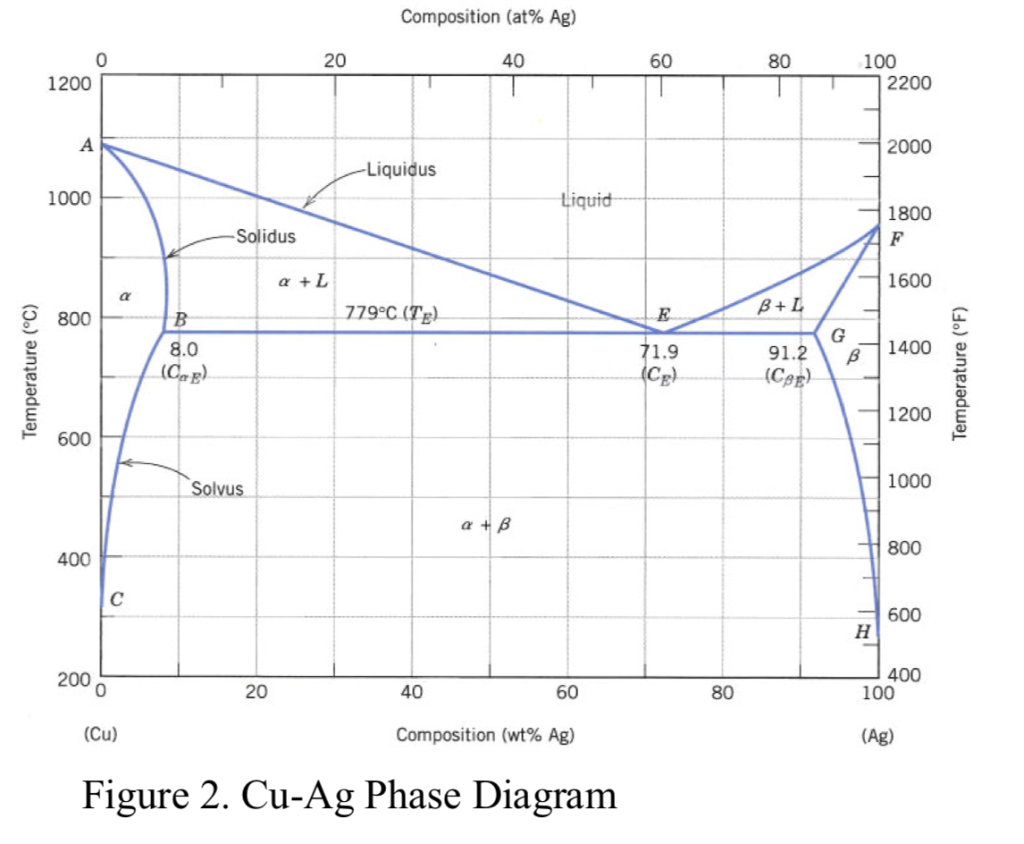

Mechanical Engineering questions and answers. 1. Considering the Cu-Ag phase diagram in Figure 1-what are the melting temperatures of Cu and Ag? Define the Eutectic point of the CU-Ag alloy in terms of % composition and temperature, (4 marks) 2. Sketch and label the grain structure of a 10% Ag, 90% Cu alloy at room temperature?
